Container House Modelling in SolidWorks

Container House Project with Modeling in SolidWorks

(Project Period: Estimated 1 Week – depends on the detail design)

The purpose is imagination to the real product. It is a learning purpose for 3D sketch and Weldment in SolidWorks.

Container House in Isometric View

From the project, the main purpose is sharing the knowledge for the future generation. Especially, it is for the engineering students, the design learner and interested people to learn it from the beginning to create the design with their own creative software. It will gain to know about the following process.

• 1.      Start the idea of the design or creation
• 2.      Collecting the Data and record the item list
• 3.      Choose the Materials (Describe the list of the Materials)
• 4.      Create the Design with the engineering software
• 5.      Practice the engineering software (Auto CAD, SolidWorks other software)
• 6.      Create the Assembly (Describe in Complete 3D View)
• 7.      Create the drawing (Detail Dimensions include in the Drawing)
• 8.      Create the Animation as much as we can to use in the presentation.

Item List for the Container House

Container House Structure
ITEM NO.	QTY.	Materials	DESCRIPTION	LENGTH (mm)
1	4	Steel ANSI304	TUBE, RECTANGULAR 100 X 50 X 4	4000
2	10	Steel ANSI304	TUBE, RECTANGULAR 100 X 50 X 4	3900
3	4	Steel ANSI304	TUBE, RECTANGULAR 100 X 50 X 4	5800
4	18	Steel ANSI304	TUBE, RECTANGULAR 100 X 50 X 4	2850
5	48	Steel ANSI304	TUBE, RECTANGULAR 100 X 50 X 4	1157.5
6	24	Steel ANSI304	TUBE, RECTANGULAR 100 X 50 X 4	460
7	3	Steel ANSI304	TUBE, RECTANGULAR 100 X 50 X 4	2900
8	10	Steel ANSI304	TUBE, RECTANGULAR 50 X 25 X 2	2850.15
9	4	Steel ANSI304	TUBE, RECTANGULAR 50 X 25 X 2	375
10	4	Steel ANSI304	TUBE, RECTANGULAR 100 X 50 X 4	830
11	2	Steel ANSI304	TUBE, RECTANGULAR 50 X 25 X 2	1145
12	12	Steel ANSI304	TUBE, RECTANGULAR 50 X 25 X 2	1120
13	2	Steel ANSI304	TUBE, RECTANGULAR 50 X 25 X 2	265
14	12	Steel ANSI304	TUBE, RECTANGULAR 50 X 25 X 2	710
15	4	Steel ANSI304	TUBE, RECTANGULAR 50 X 25 X 2	350
16	4	Steel ANSI304	TUBE, RECTANGULAR 50 X 25 X 2	735
17	8	Steel ANSI304	TUBE, RECTANGULAR 50 X 25 X 2	510
18	8	Steel ANSI304	TUBE, RECTANGULAR 50 X 25 X 2	535
19	8	Steel ANSI304	TUBE, RECTANGULAR 50 X 25 X 2	547.5
20	8	Steel ANSI304	TUBE, RECTANGULAR 50 X 25 X 2	585
21	8	Steel ANSI304	TUBE, RECTANGULAR 50 X 25 X 2	227.5
22	3	Steel ANSI304	SB BEAM 120 X 8	4400
23	4	Steel ANSI304	TUBE, SQUARE 50 X 50 X 3.20	830
24	2	Steel ANSI304	TUBE, RECTANGULAR 50 X 25 X 2	887.5
25	2	Steel ANSI304	TUBE, RECTANGULAR 50 X 25 X 2	937.65

Container House Structure Cutting Hollow Tube List

ITEM NO.	Part Number	MATERIAL	Description
1	Container House Structure	Stainless Steel Hollow Tube	Main Item
2	Foam	Poly Foam	Installation Item
17	Sealing Plate	Fiber	Installation Item
19	Wood Plate	Plywood	Installation Item
57	Outside Cover	Aluminum Coating Plate	Installation Item
60	Ceiling foam	Polly Foam	Installation Item
66	Roof Cover	fiber	Installation Item
67	Panel Profile	Zinc Coating Plate	Installation Item
72	Glass	Glass	Installation Item
84	Container Roof	Zinc Coating Plate	Installation Item
87	Door		Installation Item
88	Window		Installation Item
90	Double Bed		Support Item

Installation Item List for the Container House

Create the Container House with SolidWorks

Container House Structure Process

3D Sketch 1 for the Structure Member 1 (Weldment)

Structural Member 1 (Weldment)

Structural Member 2 (Weldment)

3D Sketch 2 for Structural Member 3 (Weldment)

Structural Member 3 (Weldment)

Structural Member 4 and 6 (Weldment)

3D Sketch 3 for Structural Member 5 (Weldment)

Structural Member 5 (Weldment)

3D Sketch 3 for Structural Member 7 and 8 (Weldment)

3D Sketch 3 for Structural Member 9 (Weldment)

Structural Member 10 (Weldment)

3D Sketch for Sb Beam

Complete Structure of Container House

Container House Installation Process

Install the Foam

Install the Wood Plate

Install the Foam

Install the Wood Plate at Both Side

Install the Foam

Install the wood plate at the interior place

Install the outside cover plate

Install the Ceiling Plate

Install the Ceiling Foam

Install the Roof

Install the Panel Profile and Glass

Install the Doors and Windows

Create the Accessories for the Container House

Window Assembly

Door and Door Frame

Double Bed

Create the Assembly (Describe in Complete 3D View)

Structure View

Assembly View

Perspective View of the container House

Create the drawing (Detail Dimensions include in the Drawing)

Cutting Hollow Tube Drawing

Cutting Hollow Tube Material List

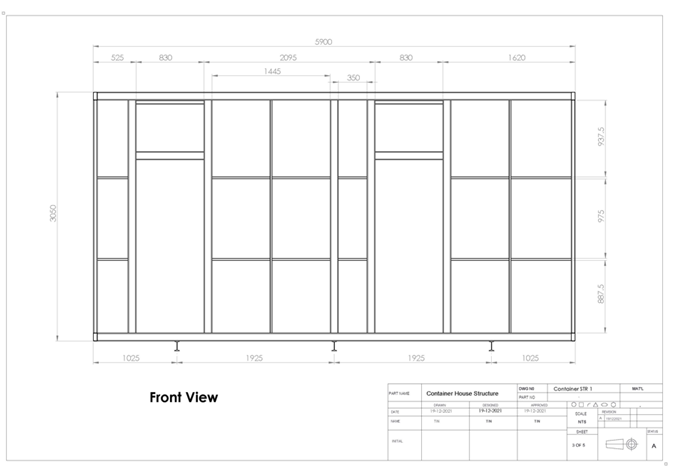

Front View of Container House

Right View of Container House

Top View of Container House

Reference Photos

Animation
